Description
- Transmits up to 1080p60 SDI or HDMI video
- 400' line-of-sight transmission to receiver, 300' to App
- HDMI and SDI inputs on transmitter and HDMI and SDI outputs on receiver
- Real-time app monitoring and live streaming via the HollyView app
- Add up to 1080p60 wireless video transmission to your gimbal, mirrorless, or DSLR camera rig using the lightweight Mars 400S PRO SDI/HDMI Wireless Video Transmission System from Hollyland.
MARS 400S PRO is using the latest coding, decoding technology, and 5G wireless transmission technology. It can achieve ultra-low latency wireless video transmission. It has a transmission range over 400ft with a clean line of sight (LOS) when the transmitter is connected to 1 or 2 receivers. MARS 400S PRO also can support 2 APPs monitoring when connection with 1 receiver. MARS 400S PRO is supports up to 1080P 60Hz image resolution. And Both transmitter and receiver equipped with L-series battery plate and also can power by DC adapter or power by USB-C interface.
Key Features
- Supports 1 Transmitter Connects With 2 Receivers
- Supports Up To 2 Mobile Devices Monitoring While Only 1 Receiver Is Connected.
- Supports Up To 4 Mobile Devices Monitoring without Receiver connecting
- OLED Display Screen
- Channel Scan
- Three Application Scene Modes
- Battery Voltage Display
- 400ft Transmission Range (LOS)
- Lowest Latency is 0.08s
- Both HDMI & SDI Connection Options
- USB Firmware Upgrade
- Integrated Cold Shoe for Quick Installation
- Supports DC Power，USB Type-C Power Supply and Battery Power Supply.
Wireless
| Wireless Range | 400′ / 121.92 m (Line-of-Sight) |
| Channel Bandwidth | 20 MHz |
| Frequency Range | 5 GHz |
| Latency | < 0.08 sec |
| RF Power | ≤ 21 dBm |
| RF Sensitivity | -80 dBm |
| Wi-Fi | Yes |
Interfaces
| Transmitter Antenna Ports | 2 x RP-SMA Male |
| Receiver Antenna Ports | 2 x RP-SMA Male |

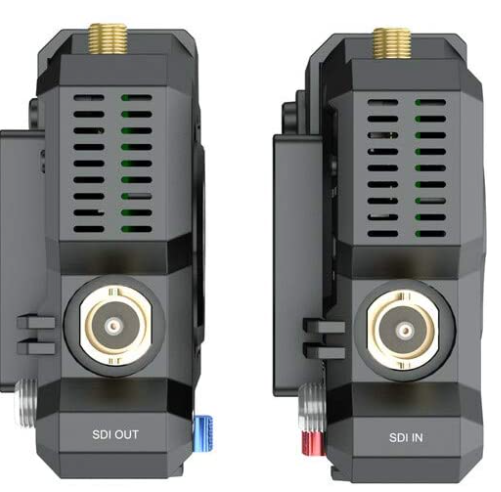

| Transmitter Video Connectors | 1 x BNC (3G-SDI / HD-SDI) Input
1 x HDMI Input |
| Receiver Video Connectors | 1 x BNC (3G-SDI) Output
1 x HDMI Output |
| Transmitter Other I/O | 1 x USB Type-C
1 x DC Input |
| Receiver Other I/O | 1 x USB Type-C
1 x DC Input |
| Embedded Audio | SDI
HDMI |
Format Support
| Video Format | SDI/BNC:
1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080i at 50, 59.94, 60 fps 1080PsF at 23.98, 24, 25 fps 720p at 50, 59.94, 60 fps HDMI: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080i at 50, 59.94, 60 fps 720p at 50, 59.94, 60 fps 576p at 50 fps 480p at 60 fps |
Display
| Transmitter Panel Type | OLED |
| Receiver Panel Type | OLED |
Power
| Transmitter Battery Support | 1 x Sony L-Series / NP-F Type |
| Receiver Battery Support | 1 x Sony L-Series / NP-F Type |
| Transmitter Power Connector | 1 x Barrel (6 to 16V DC) Input |
| Receiver Power Connector | 1 x Barrel (6 to 16V DC) Input |
| Transmitter Power Consumption | Device: (11 W) |
| Receiver Power Consumption | Device: (7 W) |
General
| Transmitter Mounting | 1 x 1/4″-20 Female
1 x Integrated Cold Shoe |
| Receiver Mounting | 1 x 1/4″-20 Female
1 x Integrated Cold Shoe |
| Materials | Metal |
| Transmitter Dimensions | 4.33 x 2.83 x 1.34″ / 11.0 x 7.2 x 3.4cm |
| Receiver Dimensions | 4.33 x 2.83 x 1.34″ / 11.0 x 7.2 x 3.4cm |
| Transmitter Weight | 0.5 lb / 206 g |
| Receiver Weight | 0.5 lb / 206 g |
Packaging Info
| Package Weight | 1.85 lb |
| Box Dimensions (LxWxH) | 7.3 x 5.7 x 3.2″ |
Specifications
| Transmitter | Receiver | |
| Interface | HDMI Input (Type A Female)
SDI Input 2 Antenna Interfaces (RP-SMA Male) DC Input Type-C USB |
HDMI Output (Type A Female)
SDI Output 2 Antenna Interfaces (RP-SMA Male) DC Input, Type-C USB |
| Supply Power Range | 6~16V DC
USB Type-C Power Supply:5V/2A |
6~16V DC
USB Type-C Power Supply:5V/2A |
| Power Consumption | <11W | <7W |
| Net Weight | 206g | 206g |
| Dimension | （L x W x H）: 110*72*33.5mm
External Antennas and Battery Plate Excluded |
（L x W x H）: 110*72*33.5mm
External Antennas and Battery Plate Excluded |
| Input / Output Video Format | HDMI:
480p60 576p50 720p50/59.94/60 1080i50/59.94/60 1080p23.98/24/25/29.9/30 1080P50/59.94/60 SDI: 1080P60/59.94/50(Level A) 1080P60/59.94/50(Level B) 1080i60/59.94/50 1080P30/29.97/25/24/23.98 1080Psf25 720P60/59.94/50 1080Psf24/23.98 |
HDMI:
480P60 576P50 720P50/60 1080i50/60 1080P24/25/30 1080P 50/60 SDI: 1080P60/50(Level A) 1080i60/50 1080P30/25/24 720P60/50 1080i50(1080Psf25/24/23.98 Input) 1080i60(1080Psf30/29.97 Input） |
| Frequency | 5GHz | 5GHz |
| Modulation Mode | OFDM | OFDM |
| Transmission Power | Maximum 21dBm | / |
| Receiver Sensitivity | / | -80dBm |
| Transmission Latency | 0.08s | 0.08s |
| Bandwidth | 20MHz | 20MHz |
Packing List
-
Transmitter x 1;
-
Receiver x 1;
-
Antenna x 5;
-
User Guide x 1;
-
DC Adapter x 1.
